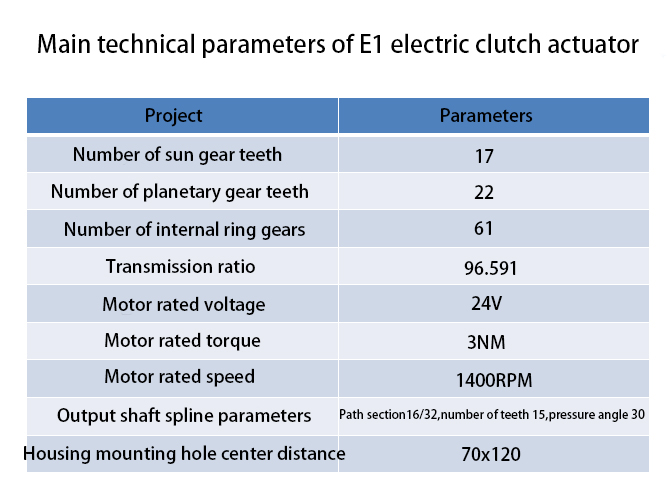

Description of the composition of the E1 electric clutch actuator
1 . The electric clutch actuator is mainly composed of a clutch actuator motor assembly, a clutch actuator gear assembly and a clutch actuator controller.The clutch actuator motorassembly mainly includes components such as a drive motor, a motor extension shaft, a brake driven disc, a brake master disc, and an electromagnetic brake;The clutch actuator assembly mainly includes components such as the sun gear, the planetary gear, the carrier and the inner ring gear.
2. The drive motor drives the torque and speed of the motor through the motor extension shaft and the first stage sun gear fixed on the motor extension shaft.
3. The first-stage sun gear and the first-stage planetary gear, the first-stage planetary carrier and the inner ring gear constitute the planetary gear transmission system and achieve the purpose of increasing the twisting and decreasing speed; the three-stage planetary gear transmission system meets the requirements of the maximum separating force required for the separation clutch.
4. The clutch actuator controller controls the forward and reverse rotation of the drive motor, and controls the pull-in and closing action of the electromagnetic brake to ensure the self-locking function during the clutch separation process
